Nobac 5000

Label length mm

500

Label/Sleeve width mm

55 - 125mm*

Pack height mm

120*

Speed ppm

150*

Power Supply v/Hz

230/50

Consumption kW

0.5

Air Consumption cfm

Description

Key Features

Label Formats

Product Description

The new Nobac 5000 linerless applicator is Ravenwood’s flagship machine and our very latest innovation, building on the core functionality of our Nobac 500 range of machinery.

Redesigned guarding for better security and access to the machine when needed
Guarding now allows for protruding products to go through the machine, for more flexibility
Relocated electrical cabinet
More space inside from moving the jacking towers. Original footprint of the Nobac 500 maintained
By relocating the jacking towers, more options are now available for multiple coding systems for both thermal transfer and thermal inkjet, or a combination of both
Optional thermal inkjet coding for the edge of cardboard trays
Modular construction now allows bolt-on or off, twin-head option for non-stop operation
Independent driven belt transfer system (proven from the PP machine) for easier set up, for different glue line positions
New label reel braking system provides better reel control especially on different substrates, such as PP or thicker boards
Optional motor adjustment
Capable of labelling fixed weight products or linking to weigh-scales for variable-weight or check-weight products
Utilises thin board sleeves with adhesive optimised for specific products
Speeds achieved up to 150ppm
Labels can be supplied in a range of weights and materials
Many label formats including top labelling, die cut and shaped

Uses single phase power and air supply of 5bar 70psi 4cfm
*General range for system. Specific label sizes and speeds agreed at time of build

View Product Brochure

Key Features

Label length mm

500

Label/Sleeve width mm

55 - 125mm*

Pack height mm

120*

Speed ppm

150*

Power Supply v/Hz

230/50

Consumption kW

0.5

Air Consumption cfm

Label Formats

Top Label

Top and Side

Top & 2 Sides

Slideable Full Wrap

Skin Pack Full Wrap

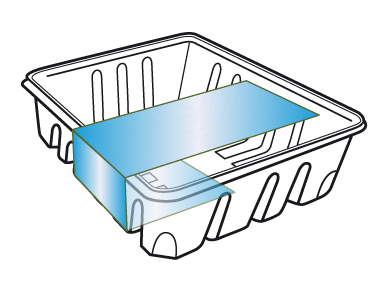

Landscape C Wrap

D-Wrap

Full Wrap

Skin Pack Full Wrap Protruding up to 25mm above height of tray

Full Wrap Shaped
